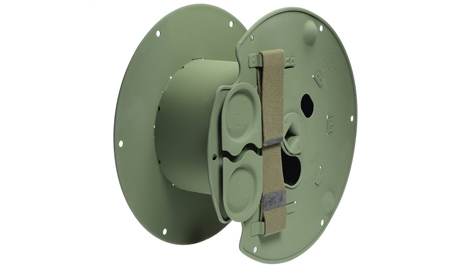

The RFO-300 cable reel holds 300 meters of 6mm overall diameter cable. The full steel construction offers strength and durability you can count on for repeated use in the toughest environments.
Included in the rugged design are features for secure cable management, connector storage, and superior cable protection. The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies.
NSN #: 8130-01-375-3802

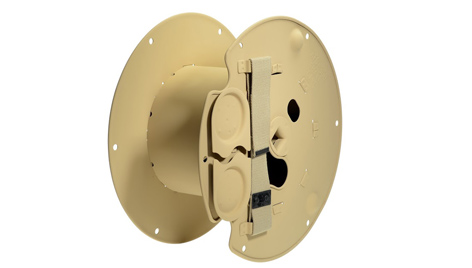

Paint finish options:
Need more information? Contact Us for assistance.
|Download PDF Drawing||
Fill name & email for instant link.
|Cable Overall Diameter||6 mm|
|Rated Cable Length||300 m|
|Flange Diameter||16.31 in|
|Inner Drum Diameter||8.93 in|
|Nominal Reel Width||7.25 in|
|Minimum Bend Radius||4.44 in|
|Approx. Weight||13.2 lbs – 6kg|
