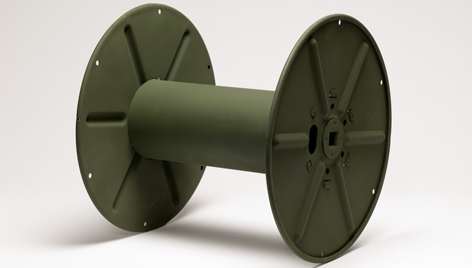

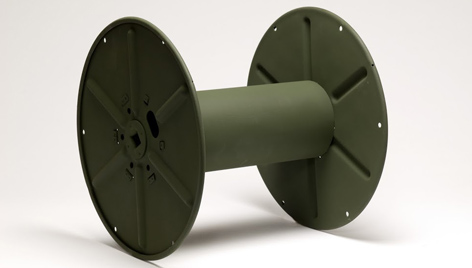

The DR-5 cable reel provides the highest cable capacity in the Shane Industries electrical cable reel line.  With durable steel construction, the DR-5 stands up to the most demanding environments where electrical wire and cable is used.  The rated capacity is 1 mile of WF-16 field wire.  The maximum weight capacity rating is 125 lbs.

NSN #: 8130-00-253-0106

Paint finish options:

CARC Green
CARC Desert Tan
Black Powder Coat


Need more information? Contact Us today for assistance.

DR-5 Specifications
Download PDF Drawing Contact Us
Cable Overall Diameter 6 mm
Rated Cable Length 676 m
Flange Diameter 19.25 in
Inner Drum Diameter 6.59 in
Nominal Reel Width 17.00 in
Minimum Bend Radius 3.3 in
Approx. Weight 26 lbs – 11.88 kg
