MP-Handheld

About

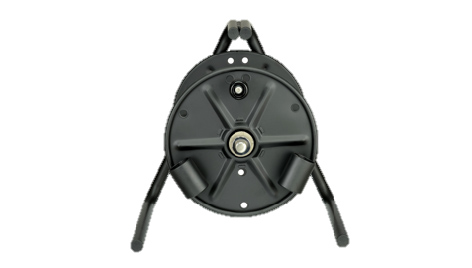

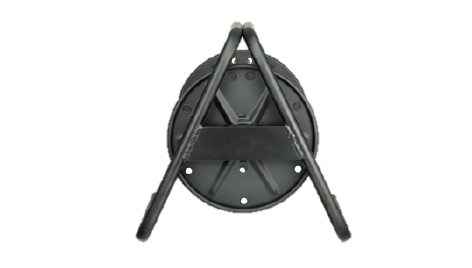

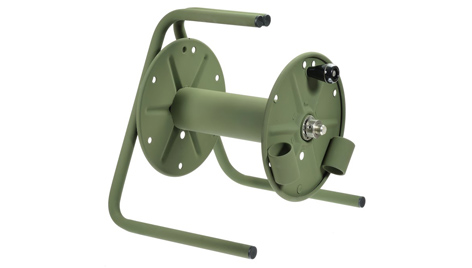

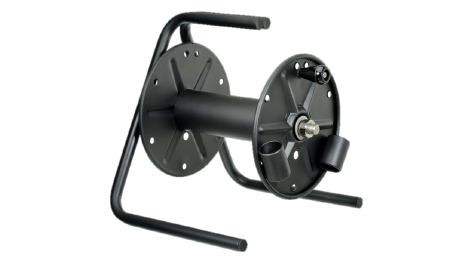

The MP-Handheld cable reel manufactured by Shane Industries is the smallest handheld reel option we offer.  Formerly known as the MP-6707982-0, the MP-Handheld reel comes in both powder coat and CARC paint finishes, providing a robust yet lightweight design which users in both commercial or defense sectors can benefit from.



NSN #: 4933-01-416-7839



Paint finish options:



CARC Green

CARC Desert Tan

Black Powder Coat

Custom



Need more information? Contact Us today for assistance.

MP-Handheld Specifications
Download PDF Drawing

MP-Handheld

Fill name & email for instant link.


Your Name (required)

Your Email (required)

Cable Overall Diameter 6 mm
Rated Cable Length 190 m
Flange Diameter 9.0 in
Inner Drum Diameter 2.75 in
Nominal Reel Width 9.0 in
Stand Base Width 13.0 in
Stand Base Depth 11.0 in
Stand Height 12.75 in
Minimum Bend Radius 1.38 in
Approx. Weight 9.16 lbs – 4.15 kg
