RFO-500-6

About

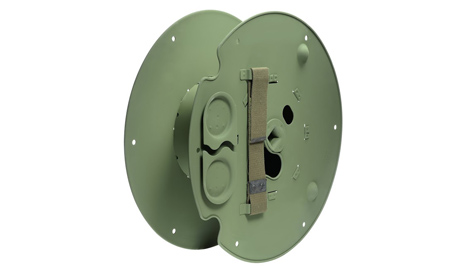

The RFO-500-6 cable reel holds 500 meters of 6mm overall diameter cable.  The full steel construction offers strength and durability you can count on for repeated use in the toughest environments.

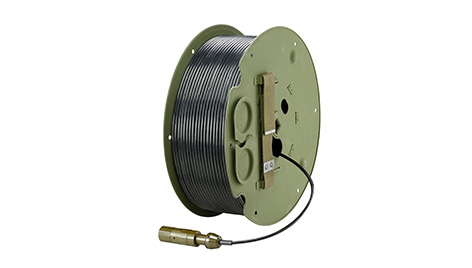

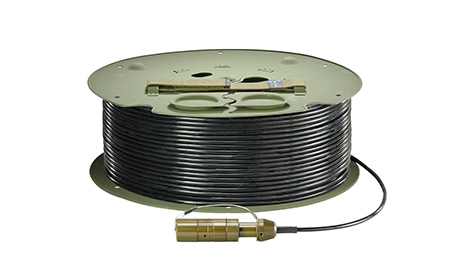

Included in the rugged design are features for secure cable management, connector storage, and superior cable protection.  The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies.

NSN #: 8130-01-582-9784

Paint finish options:

CARC Green
CARC Desert Tan
Black Powder Coat
Custom

Need more information? Contact Us today for assistance.

RFO-500-6 Specifications
Download PDF Drawing

RFO-500-6

Fill name & email for instant link.


Your Name (required)

Your Email (required)

Cable Overall Diameter 6 mm
Rated Cable Length 500 m
Flange Diameter 20.12 in
Inner Drum Diameter 8.93 in
Nominal Reel Width 6.5 in
Minimum Bend Radius 4.38 in
Approx. Weight 16.5 lbs – 7.5kg
