RFO-1000

About

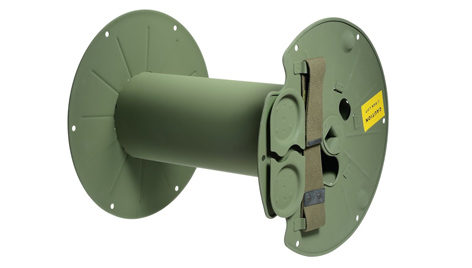

The RFO-1000 cable reel holds 1000 meters of 6mm overall diameter cable.  The full steel construction offers strength and durability you can count on for repeated use in the toughest environments.

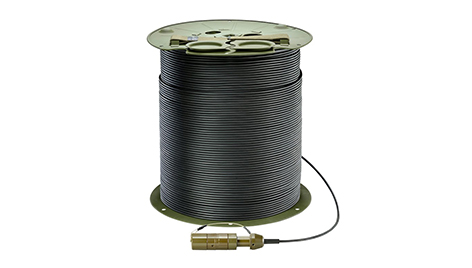

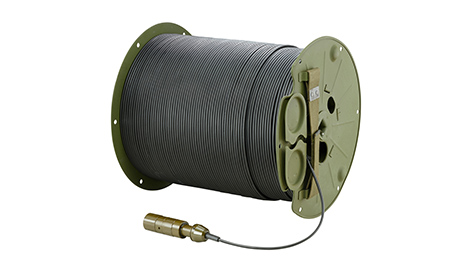

Included in the rugged design are features for secure cable management, connector storage, and superior cable protection.  The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies.

NSN #: 8130-01-375-3803

Paint finish options:

CARC Green
CARC Desert Tan
Black Powder Coat
Custom

Need more information? Contact Us today for assistance.

RFO-1000 Specifications
Download PDF Drawing

RFO-1000

Fill name & email for instant link.


Your Name (required)

Your Email (required)

Cable Overall Diameter 6 mm
Rated Cable Length 1000 m
Flange Diameter 16.31 in
Inner Drum Diameter 6.77 in
Nominal Reel Width 17.13 in
Minimum Bend Radius 3.31 in
Approx. Weight 16.36 lbs – 7.42kg
