DR-8

About

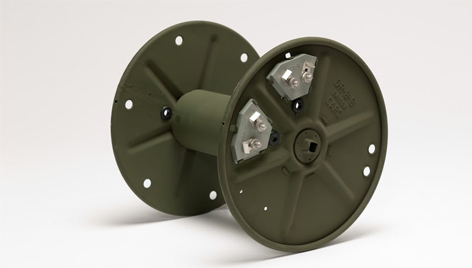

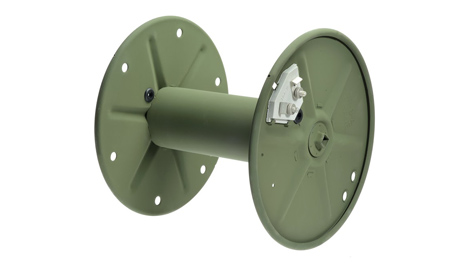

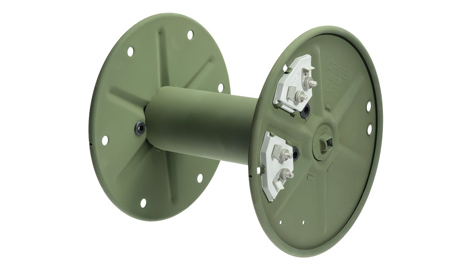

The DR-8 series cable reels manufactured by Shane Industries are the most compact and lightweight reels we offer.  Holding up to 0.5km of WT-1/TT field wire, the DR-8 reels offer high utility in a rugged, long lasting, and compact design.  Reel DR-8A includes one wire clamp, and reel DR-8B includes two wire clamps for added cable management and security during storage and transport.  The maximum weight capacity rating is 15 lbs.

NSN #:  DR-8A 8130-00-407-7859

NSN #:  DR-8B 8130-01-453-1621

Paint finish options:

CARC Green
CARC Desert Tan
Black Powder Coat
Custom



Need more information? Contact Us today for assistance.

DR-8 Specifications
Download PDF Drawing Contact Us
Cable Overall Diameter 6 mm
Rated Cable Length 190 m
Flange Diameter 9.0 in
Inner Drum Diameter 2.75 in
Nominal Reel Width 7.625 in
Minimum Bend Radius 1.38 in
Approx. Weight 2.47 lbs – 1.12kg
